Treeligo 12V Universal Electric Air Conditioner 12V RV Automotive Split Air Conditioning Car Truck Parking Camper Van Tractor

SPECIFICATIONS

Brand Name: Treeligo

Car: Trunk,Ambulance,Ferris wheel,Forklift,Tour car,Van,Yatch,sweeper,Agricultural machinery,Engineering machine

Class: a/c

Compressor displacement: 20CC

External Testing Certification: ce

High-concerned chemical: none

Is it Powered: Powered

Item Height: 21

Item Length: 66

Item Type: Air-conditioning Installation

Item Weight: 28

Item Width: 49

Material: ABS+PC

Model Name: EAC1009

OEM NO.: Temperature Setting (Temperature Range: 16°C-32°C)

Origin: Mainland China

Rated Cooling Capacity: 1000W-3000W

Refrigerant: R134a

Refrigerant filling amount: 650g

Special Features: Cooling

Trunk: KENWORTH,PETERBILT,FREIGHTLINER,MACK,STERLING,Astra,DAF,IVECO,MAN,MULTICAR,Renault,SCANIA

Type: Air conditioning Installation

Voltage: 12V,24V

Year: 2025

Feature

1. Vehicle grade DC variable frequency compressor (adjusts output power according to indoor temperature requirements, efficient and energy-saving, improves comfort)

2. Rapid cooling (1000-3000W cooling capacity for rapid cooling)

3. Can be installed vertically or horizontally, and can be installed under the car (while meeting the installation needs of different vehicle scenarios)

4. High strength base plate+ABS shell (shaking does not break, high temperature does not deform, corrosion resistance)

5. Abundant air volume (internal unit air volume 450m ³/h)

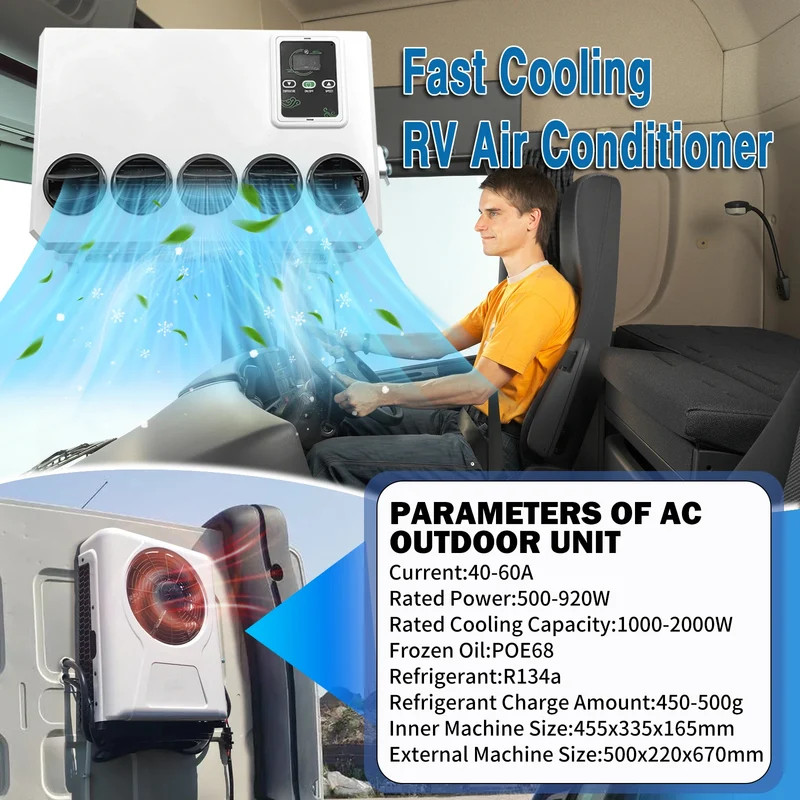

Specification:

Voltage: 12V/24V

Current: 40-60A/21-42A

Power: 500-1000W

Cooling Capacity: 1000-2100W

Temperature Range: 16℃-32℃

Airflow: Approx. 240-450m³/h

Noise Range: Indoor Unit: 52dB(A)

Outdoor Unit: 80dB(A)

Hot Air: None

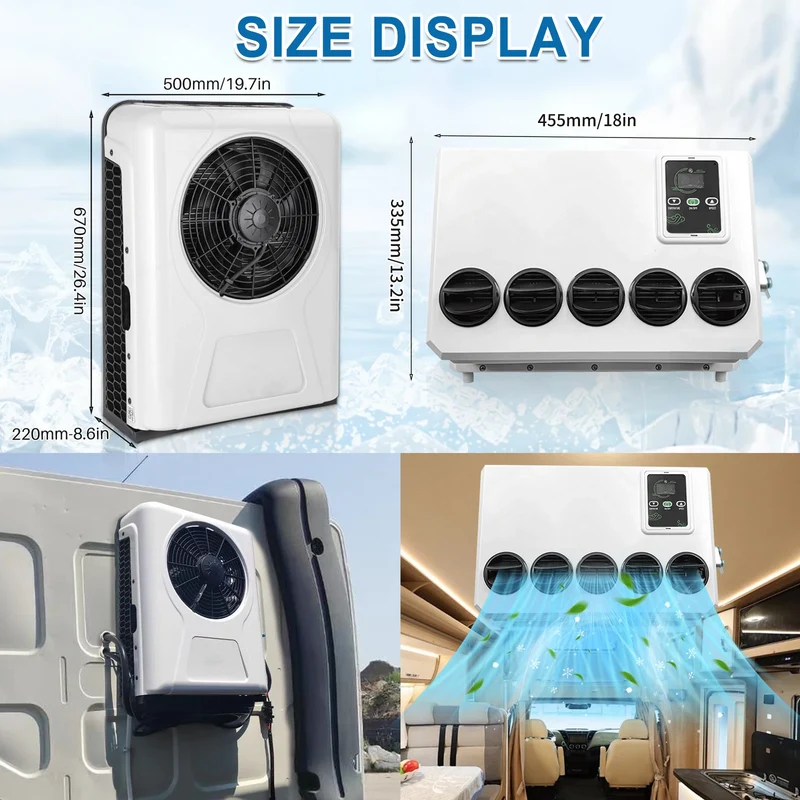

Dimensions: Outdoor Unit: 670*500*220mm

Indoor Unit: 455*335*165mm

Weight: 27kg

Refrigerant Type: R134a

Air Outlet Style: Round Bullseye

Evaporator Tubes: Aluminum Tube Parallel Flow

Fan Count: 1

Compressor Vibration Damping: Level 1 Vibration Damping

Evaporator Placement: Horizontal/Vertical

Remote Control: Yes

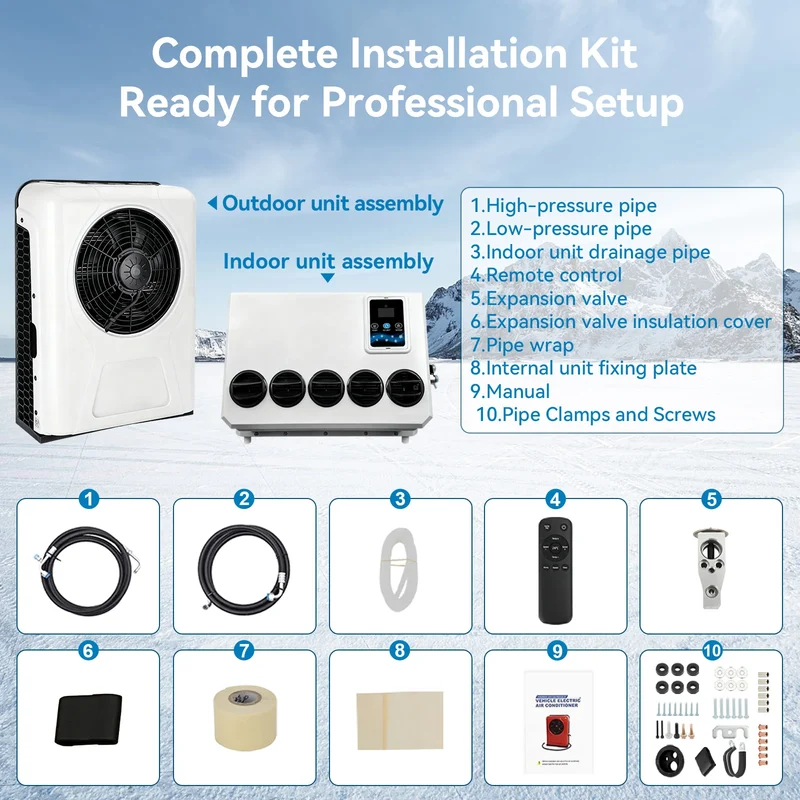

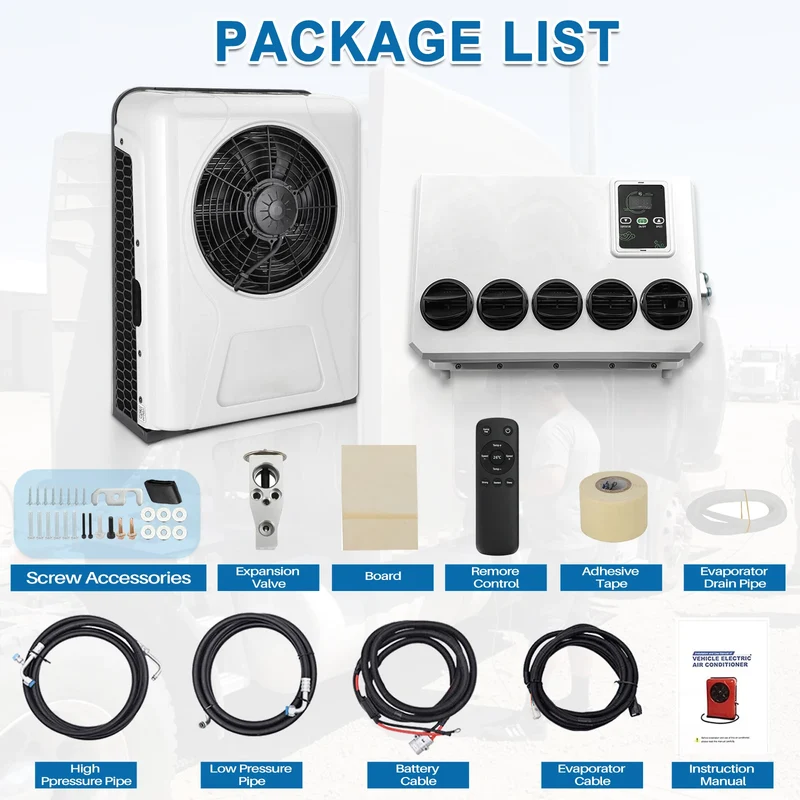

Installation Accessories: Bolts, Nuts, etc.



12V DC PARKING AIR CONDITIONER :

It is powered by the battery of the Truck car.

The parking air conditioner is a kind of in-car air conditioner. It refers to the equipment that uses the on-board battery DC power supply (12V) to make the air conditioner run continuously when parking and waiting and resting, and to adjust and control the temperature, humidity, flow rate and other parameters of the ambient air in the car, so as to fully meet the comfort cooling needs of the truck driver.

These DC 12V products are now widely used in the ventilation and air conditioning systems for the cabs in trucks, tractors and construction machinery. 12V electric air conditioning system have multi installation ways to ensure it can be suitable for most vehicles in the market. It includes 1) rooftop mounted air conditioner for van, truck, commercial vehicles, special vehicle, trailer, earth-moving machine, motorhome, RV (recreational vehicle), and 2) back-wall mounted air conditioner for truck, tractor, trailer, heavy duty truck, light truck, truck cab, truck sleeper, sleeper cab.

This is the most popular truck parking air conditioner on the market.
The truck air conditioner is divided into two types : Rooftop Air Conditioner/ split type model. Very easy to install.
The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside.

PRODUCT ADVANTAGE:

1. Light and thin appearance, saving space
2. 100% battery driven, save fuel consumption and save space with compact design
3. The outdoor shell is made of nylon plastic and polycarbonate plastic mixture. Has stronger toughness,Good rust prevention and No color fading performance.
4. After strictly water pouring test,No water penetration.
5. Independent production of the electric scroll compressor.High refrigeration efficiency, low noise, low energy consumption, low failure rate.
6. Super condenser, more superior heat dissipation.
7. High quality evaporator, stronger refrigeration.
8. Digital frequency conversion control, more efficient and more energy saving. Use energy saving mode when you sleep at night,It can run continuously 6 to 8 hours. Use super mode in hottest hours, cooling rapidly and stronger air supply.
9. Double insulation,noise reduction,more comfortable.
10. Widely used,easy to install.
It is famous because of its:
High Cooling Capacity & Reliable Performance Suitable for Most Place in the World;
Stream Line Design to Apply All Kinds of Van & Mini Bus;
Environment Friendly;
Cheap Price with High Quality;
ISO 9001, CE & TS16949 Certification;
12 Months Warranty Time After Delivery.
Technological data of air conditioner unit for Excavator construction machinery Truck Mini Bus Van
