Treedix USB Cable Data Line Test Board USB Cable Checker Data Wire Charging Test Card TypeC Micro Type A Type B

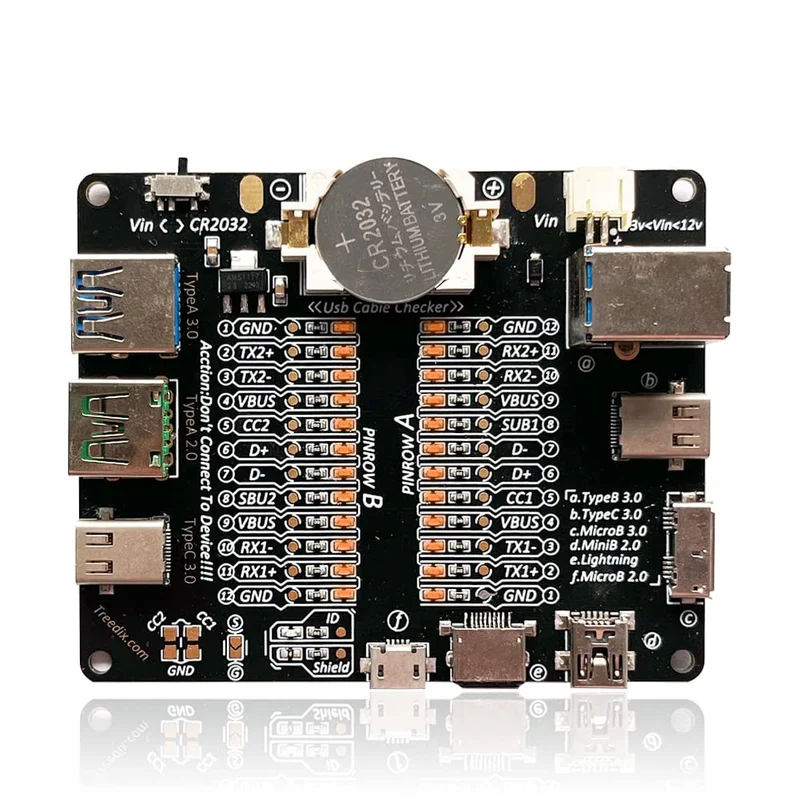

DescriptionSpecification:The USB cable tester is a reliable tool used to test the connection status and integrity of USB cables. It features a simple and straightforward design consisting of 24 LED indicators, associated resistors, and a standard CR2032 coin battery. Users simply need to plug the two ends of the USB cable to be tested into the corresponding connectors, and the LED indicators will show the integrity of the internal wires of the cable. This allows users to intuitively understand the status of the cable, whether there are broken connections due to missing wires or physical damage. (Note: The cables powerbearing capacity cannot be tested.)PCB Size: 3.35 inches x 2.76 inches (85mm x 70mm)Power: Power 1 CR2032 button battery, Power 2 Vin (external power supply)Vin range: 3V Measurement types: TypeB 3.0, TypeB 2.0, TypeC 3.0, MicroB 3.0, MicroB 2.0, MiniB 2.0, and Lightning.TypeC 3.0 is compatible with TypeC 3.1 and 3.2 as they share the same pins.Instructions for use:Insert the CR2032 button battery or connect the Vin power supply.Switch the power switch correctly based on the connected power supply.Connect the USB cable to be tested, and the LED indicators will light up. (Please note that shortcircuited pins, diodes, active electronics, or other faults/things inside the cable may provide false results.)Package includes:1*USB detection board
