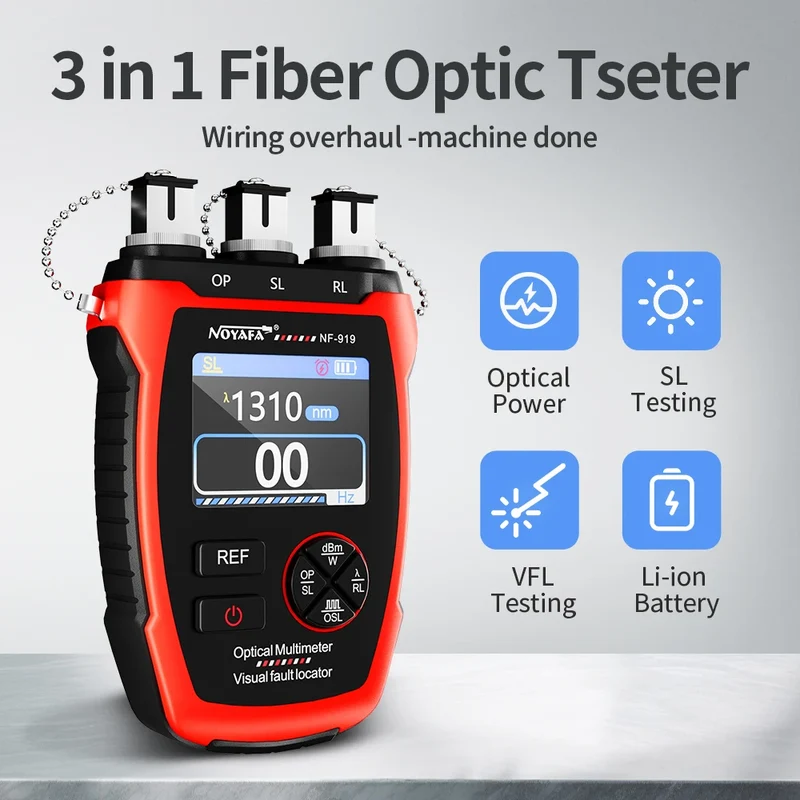

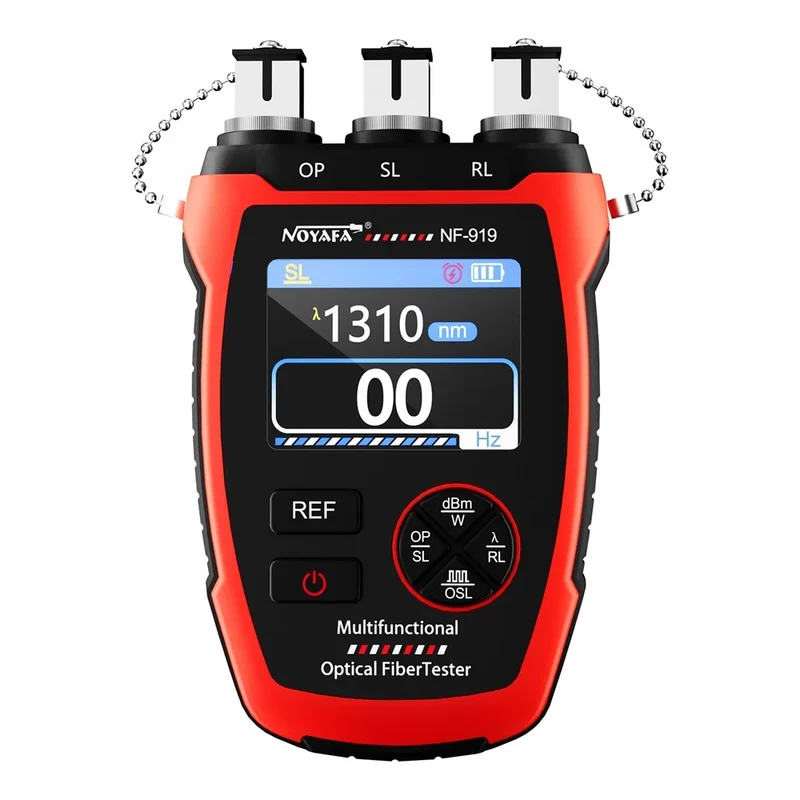

NOYAFA NF-919 Mini Optical Power Meter Visual Fault Locator Network Cable Test OPM/REF -70~+9dbm SC/FC/ST Universal Port

SPECIFICATIONS

Battery Included: Yes

Brand Name: NOYAFA

Certification: CE,FCC

High-concerned chemical: none

Model Number: NF-919

Origin: Mainland China

Package: Yes

Type: Cable Tester

Multifunctional Optical Fiber Tester

Optical Power /Source Light/VFL/3-in-1

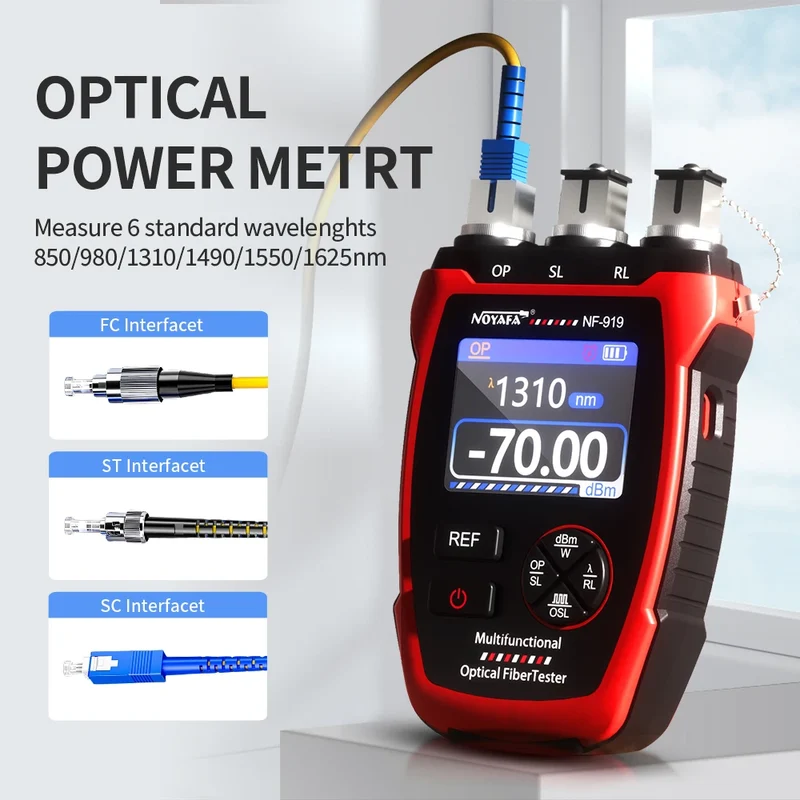

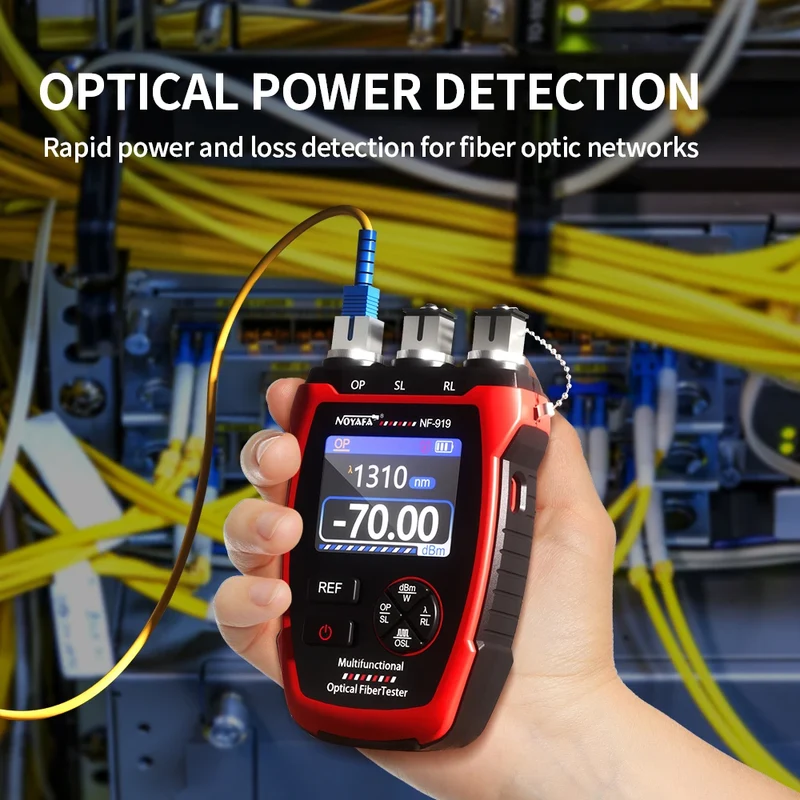

Accurately Measures Optical Power

Preferred for Fiber Cable Construction and Maintenance

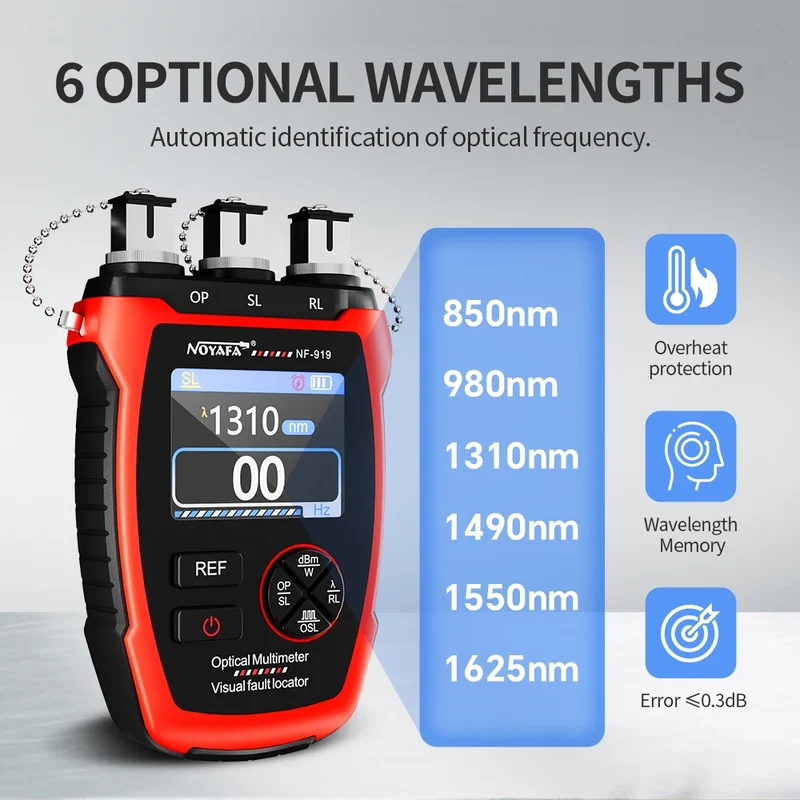

Optical Power Frequency Automatically Recognizes

Tests 6 wavelengths, measurement range-60~+8dBm, measurement error less than ±0.3dB

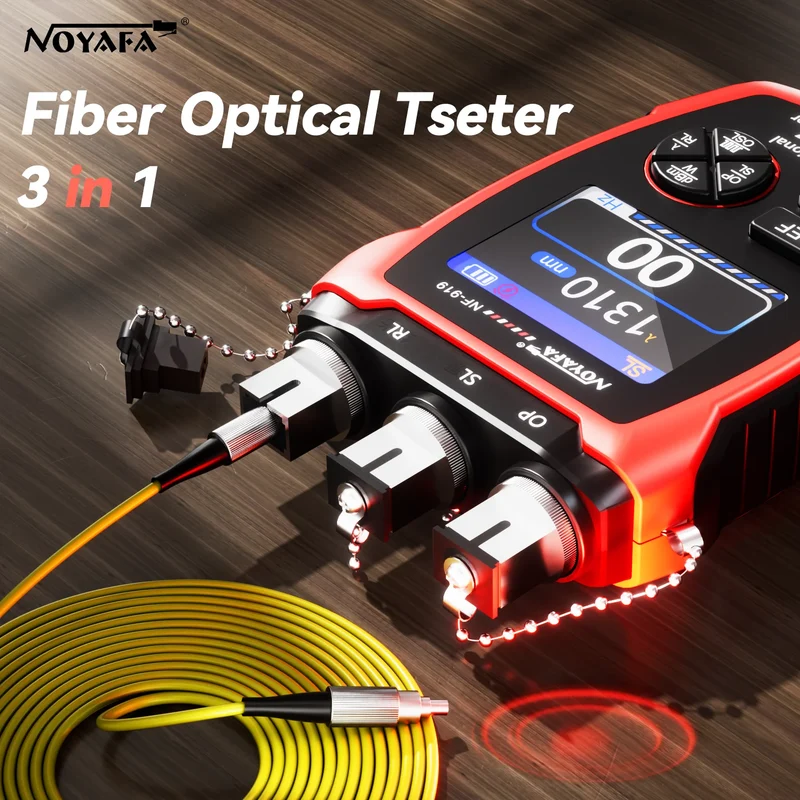

2.5mm Universal Interface

Supports FC, SC, ST fiber optic interfaces

Quality Laser Head Stable Emission

Stably emits strong light, easily penetrates long-distance fibers, enhancing work efficiency

10mw Powerful VFL Source Light

Fiber concentrates with minimal divergence, easily penetrates long-distance fibers, quickly detects line connectivity, stably strong performance

Upgraded to High-Definition Large Color Screen

Data clearly displayed, easy to operate

Mainstream Type-c Charging Interface

Built-in 1500mAh lithium battery, intelligent protection against overcharge, overcurrent, overvoltage, short circuit

ABS Engineering Plastic Silicone Edge Protection

Encased protection, effectively absorbs impacts when dropped, reducing damage risk

Compact and Portable One-Hand Operable

Light and easy to handle, convenient to carry in pocket

Exquisitely Crafted Detail-Oriented

Never compromises on details, our diligence reflected in every aspect

Intelligent Standby Mode

Automatically shuts off after 30 minutes of inactivity upon startup

Low Battery Indicator

Alerts fortimely charging when battery falls below 19%

Button Descriptions

Product Specifications

Model number：NF-919
Display：Color LCD
Light source function：Wavelength 1310/1550nm
Frequency 00Hz、 270Hz、 1000Hz、 2000Hz
OPM test function：Unit dBm/(m、u) nW
Wavelength 850nm/1300nm/1310nm/1490nm/
1550nm/1625nm REF function
Red light function：Frequency 00Hz/01Hz (Steadyon/Flashing) Wavelength 650nm
Auto-off：Shut off if no any operate for 30 mins (this function can set on/off)
Lowbattery indication：√
Working temperature：-20°C~50°C
Power supply：3.7V 1500mA lithium
Product dimension：139x84x29mm

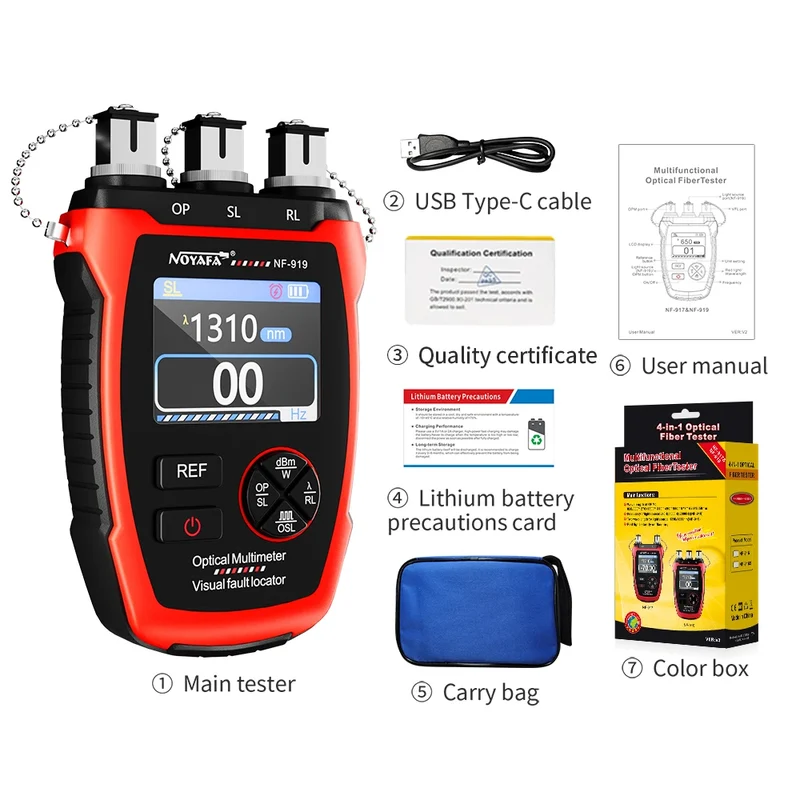

Package Includes
