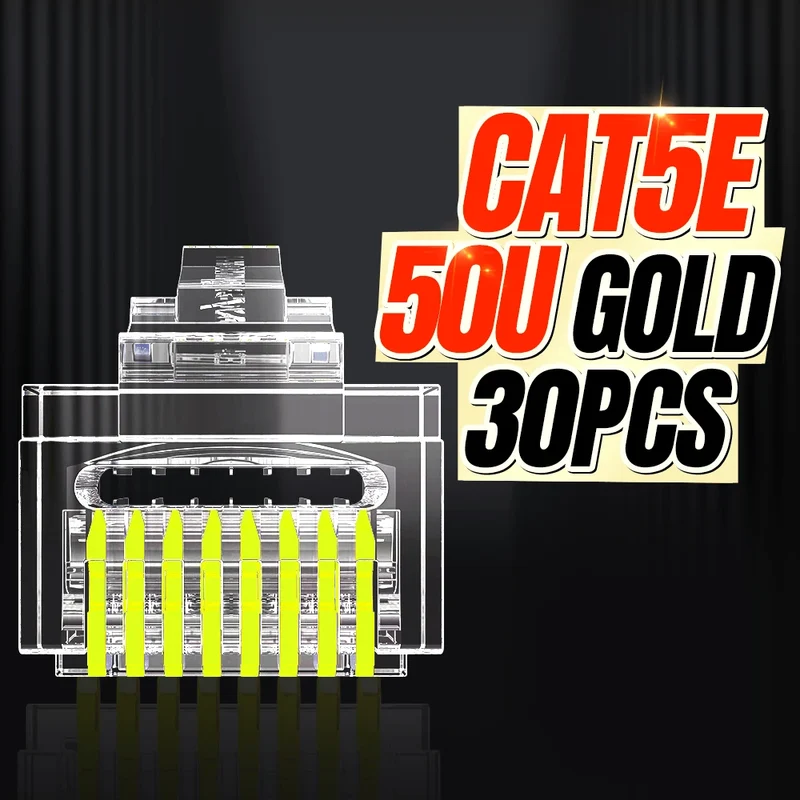

AMPCOM RJ45 Connector Pass Through CAT6 CAT5E Modular Plug Network Ends UTP 3U 50u Gold Plated 8P8C Crimp End for Ethernet Cable

SPECIFICATIONS

Brand Name: AMPCOM

Choice: yes

High-concerned chemical: none

Interface Type: RJ-45

Max. LAN Data Rate: 1000Mbps

Origin: Mainland China

• High-Speed Network Connectivity :Experience seamless data transmission with AMPCOM's RJ45 Connector, offering a maximum LAN data rate of 1000Mbps.

• Modular Design :The modular plug design allows for easy installation and removal, making it convenient for various networking needs.

• Gold Plated 8P8C Crimp End :The gold-plated 8P8C crimp end ensures optimal signal transmission and durability, enhancing the overall performance of your Ethernet cable.

• Versatile Compatibility :Compatible with CAT6 and CAT5E network standards, this connector is versatile and adaptable to various networking environments.

• Durable Construction :Originating from Mainland China, this brand guarantees a robust construction that ensures long-lasting use and high reliability.

• Efficient Data Transfer :With its RJ-45 interface, this connector provides efficient data transfer, ensuring seamless communication for your devices.

AMPCOM CAT5E/CAT6 EZ UTP RJ45 Connectors

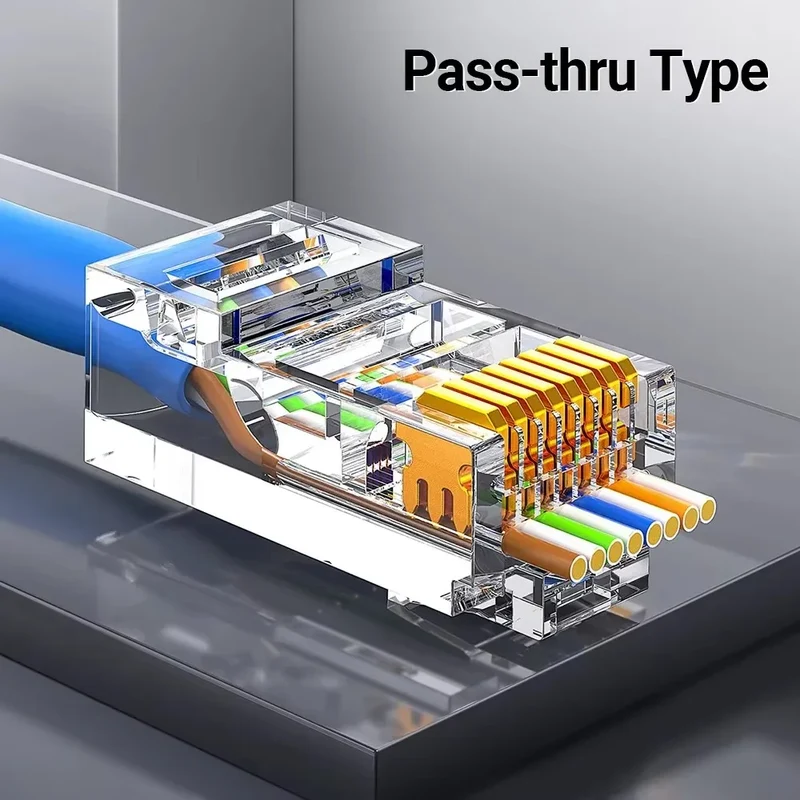

PASS-THRU DESIGN - Easy to use, and with the unshielded clear connectors you can easily idetify wiring order before crimping, even if it’s your first time. Wires can pass through the slot.

APPLICATION SCOPE - multi-stranded and single-stranded cables: CAT6(23-26AWG) CAT5E(24-28AWG). The wire OD of network cables with the same AWG specifications may vary depending on the manufacturer. Please ensure AWG and OD MUST BOTH meet the requirements.

High Perfomance - 3/50μ Gold plated pass through connectors with 3-prong blade ensures closer combination between the contacts and the wire core than 2-prong blade, and it can provide higher data transfer speeds

PACKAGE INCLUDES-10/30/100 pcs Pass through UTP RJ45 Connectors

CAT5E:

Outside Dianeter: 1.0±0.02mm

Condutor OD: Max 0.512mm

Wire OD: 24-28AWG

Speed: 1000Mbps

Bandwidth: 100Mhz

CAT6:
Outside Dianeter: 1.08±0.02mm
Condutor OD: Max 0.57mm
Wire OD: 23-26AWG
Speed: 1000Mbps
Bandwidth: 250Mhz

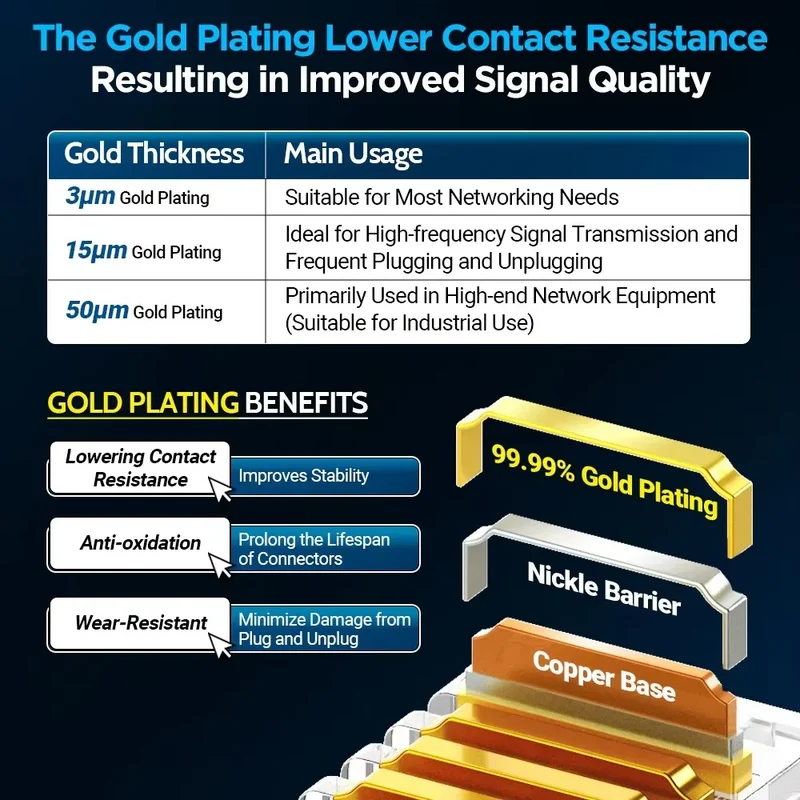

3μ and 50μ gold plated conductor

their difference is the different thickness of the gold plating layer, the rest is the same, you can choose according to your needs.

3 Layers Tripoints Gold Plated Contact Teeth

Tripoint type contact provide more reliable termination for either solid or stranded cable

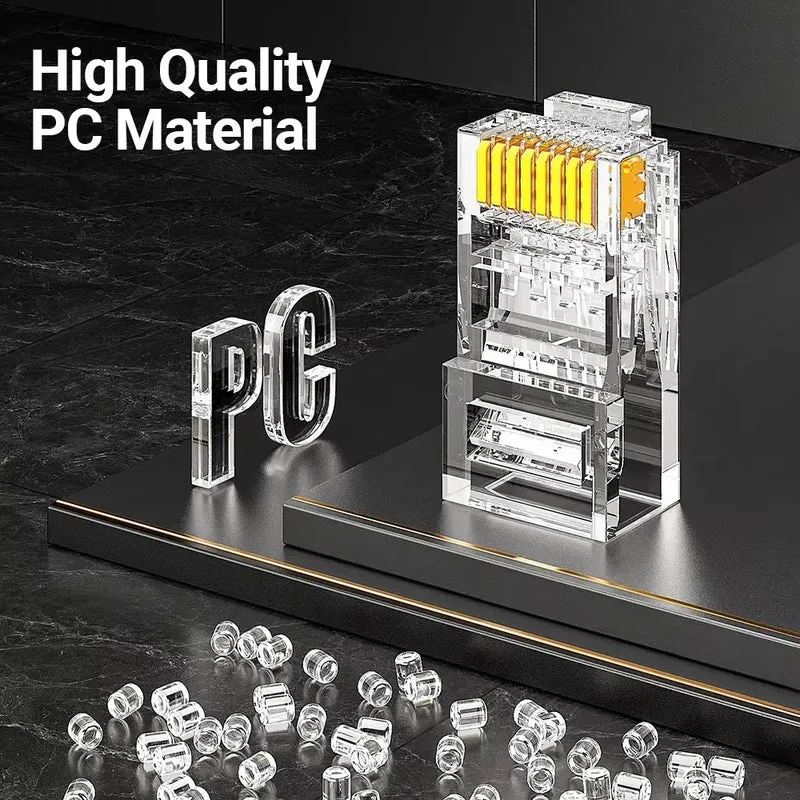

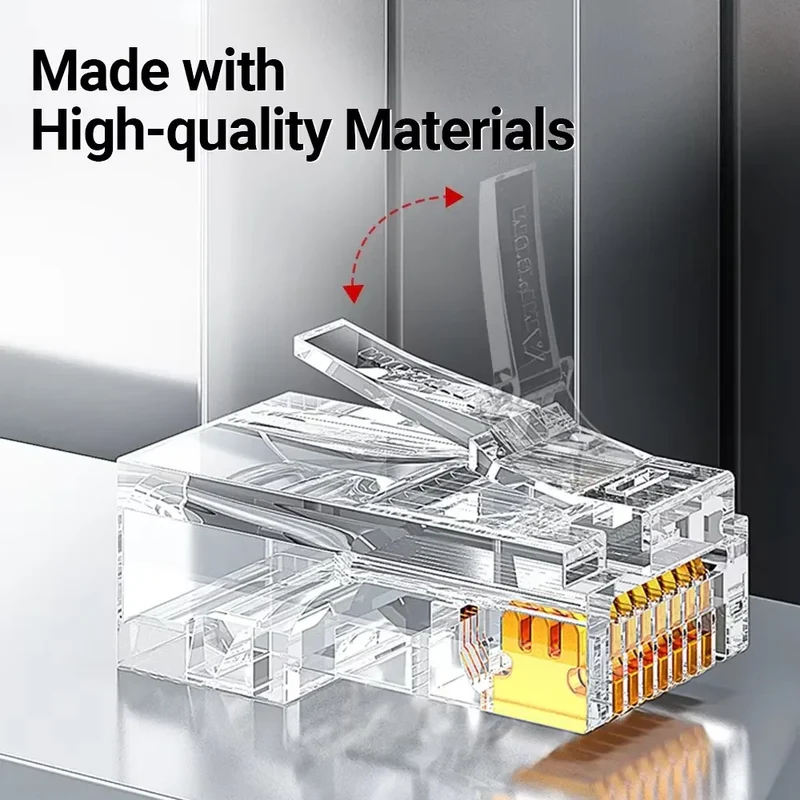

Made by Eco-friendly Material

—Bending Resistant Snap Latch

—Support 180° Bending over 25+ Times

Environmental LG Material

Never Break and Easy to Crimp

High quality solid connector will not break when crimping

Fully Compatible with the RJ45 Interface Devices

allow you to make up the perfect length cable for your applications

    Multiple Choices         Specification

How to Make an Ethernet Cable

1.Stripl the Jacket off

2.Seperate wiers and arrange based on T568A/B

3.Trim wires then insertinto

4.Put the wires intocrimp dies then squeeze

5.Precisely Crimp and trimexcess wires at the same time

6.Ensure all pin are set anduse RJ45 tester to check

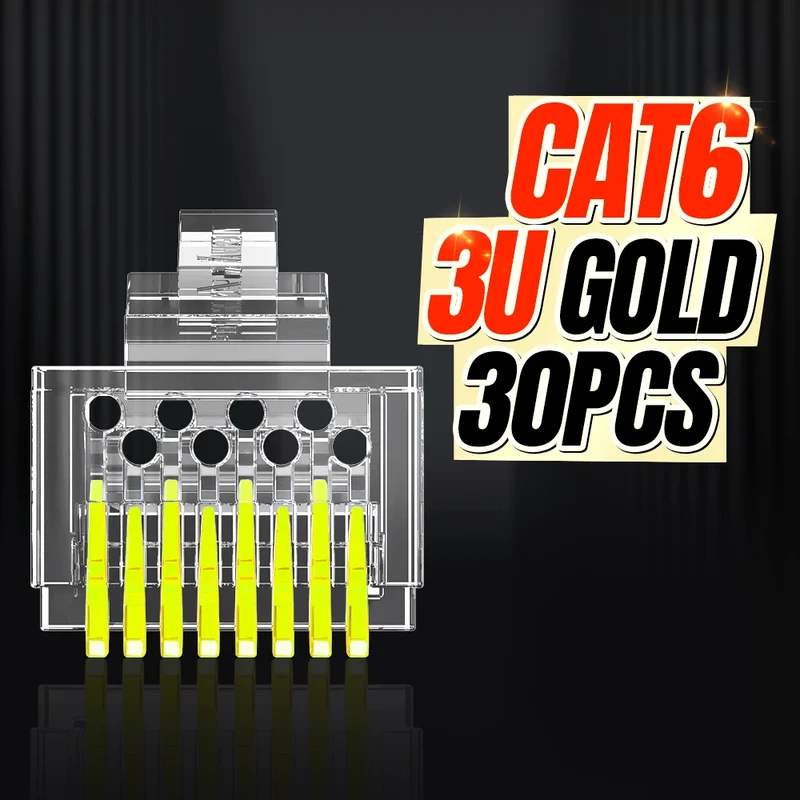

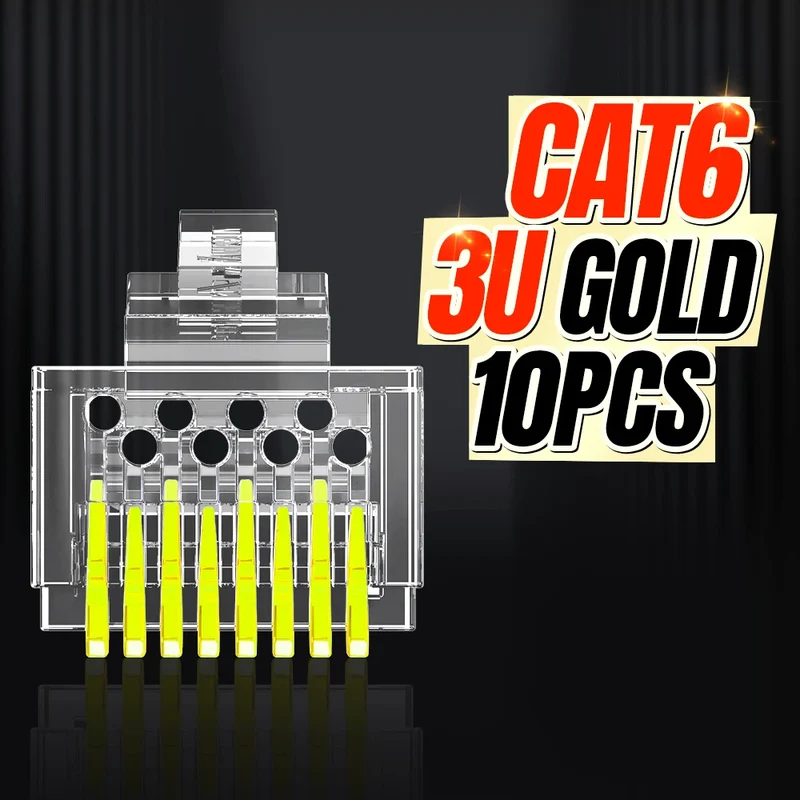

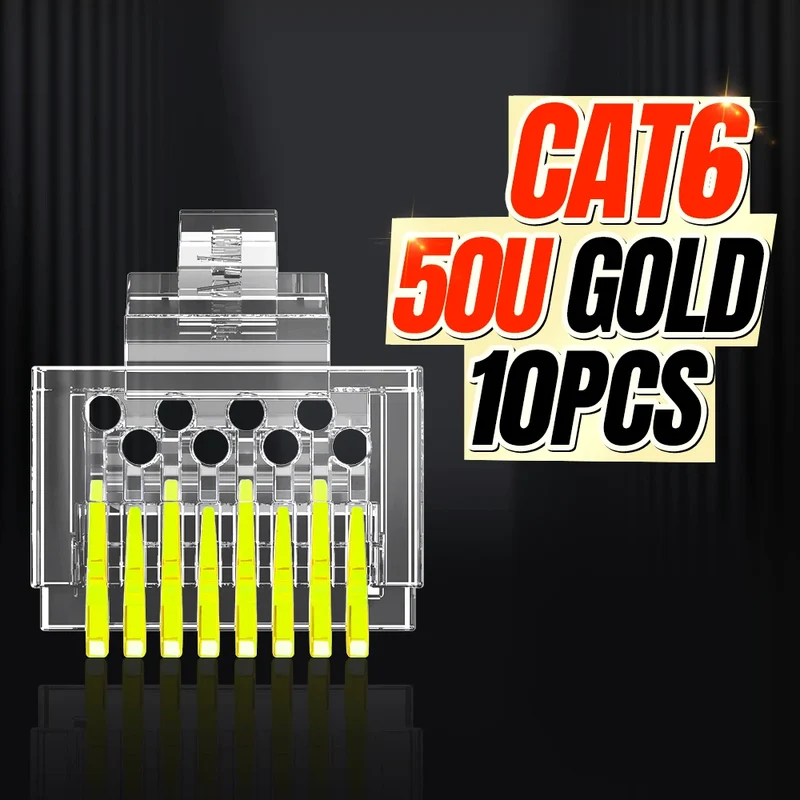

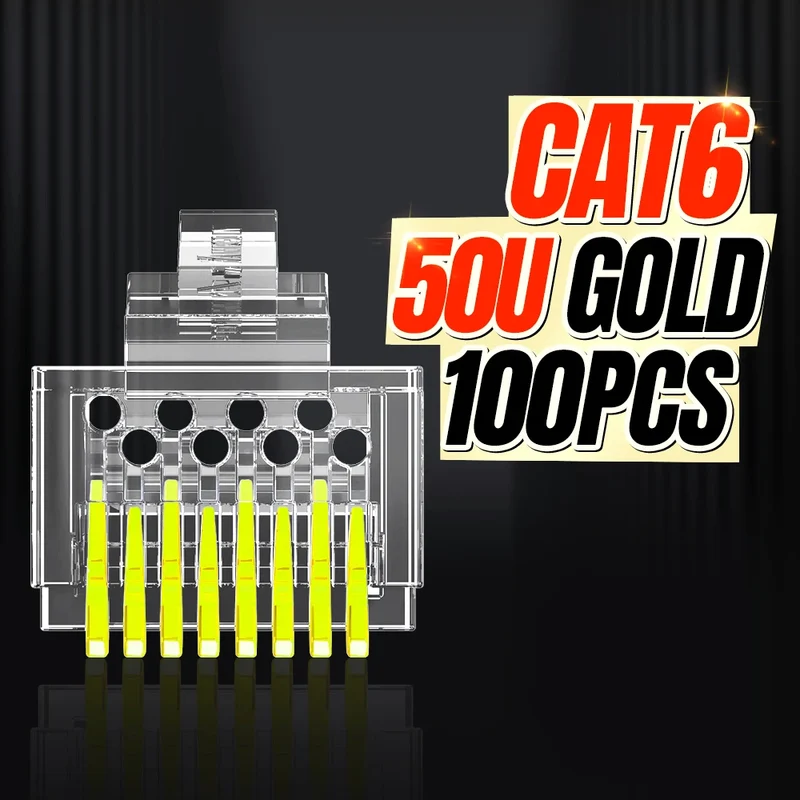

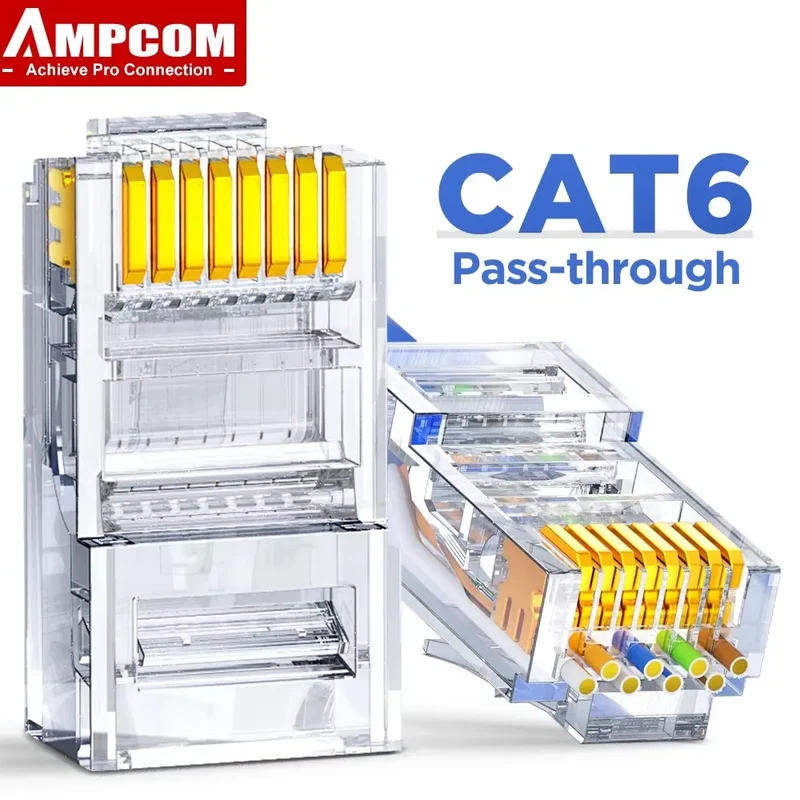

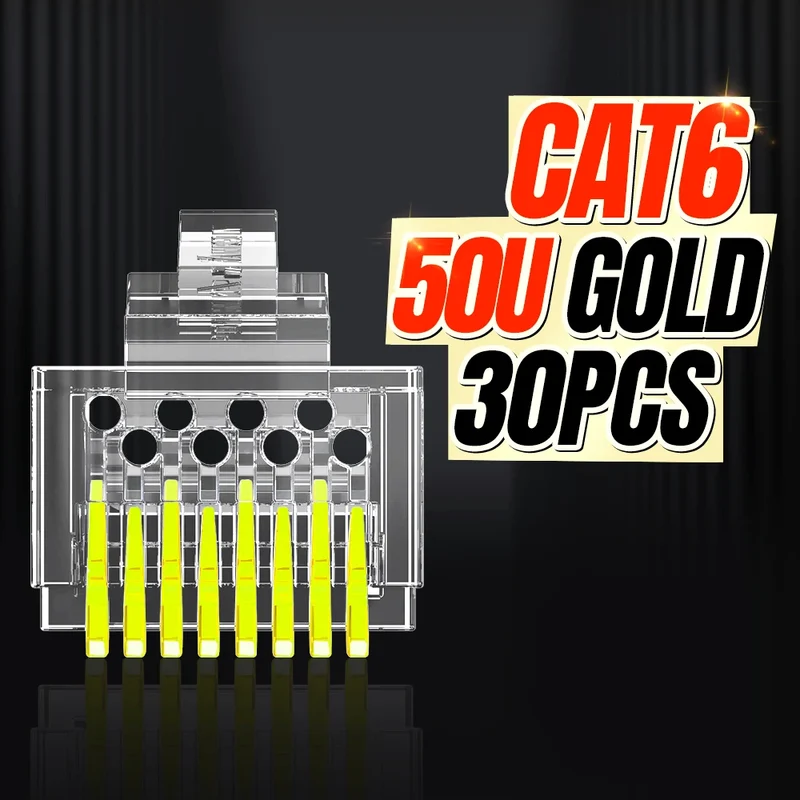

CAT6 Pass Through RJ45 Connectors

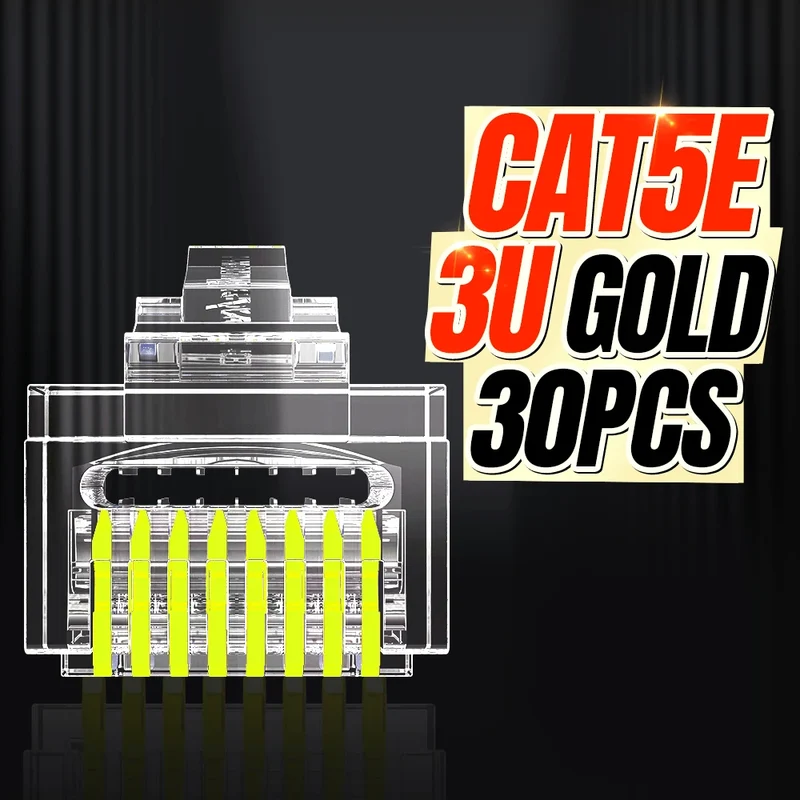

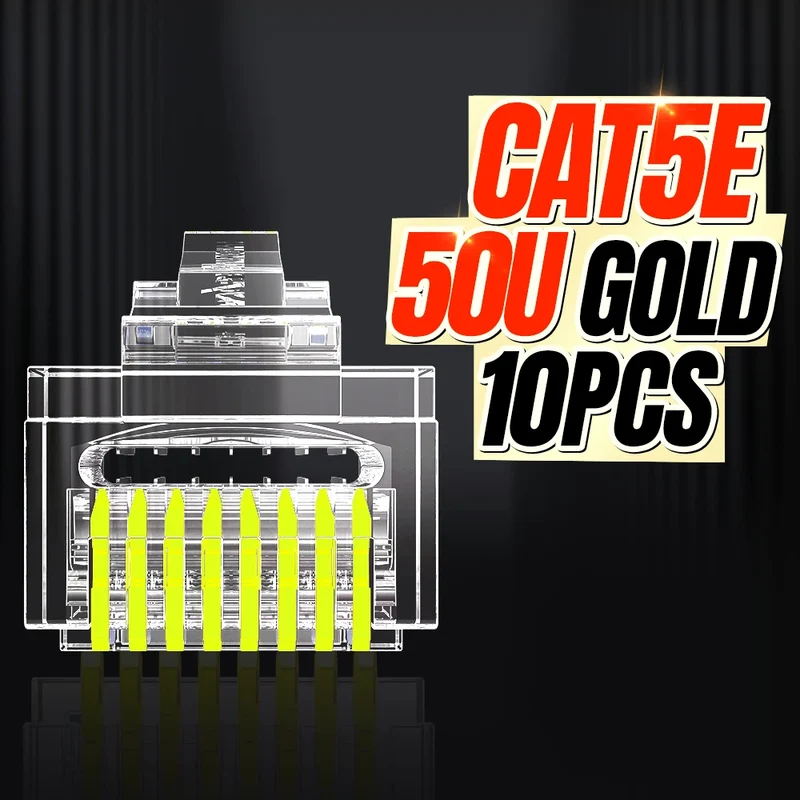

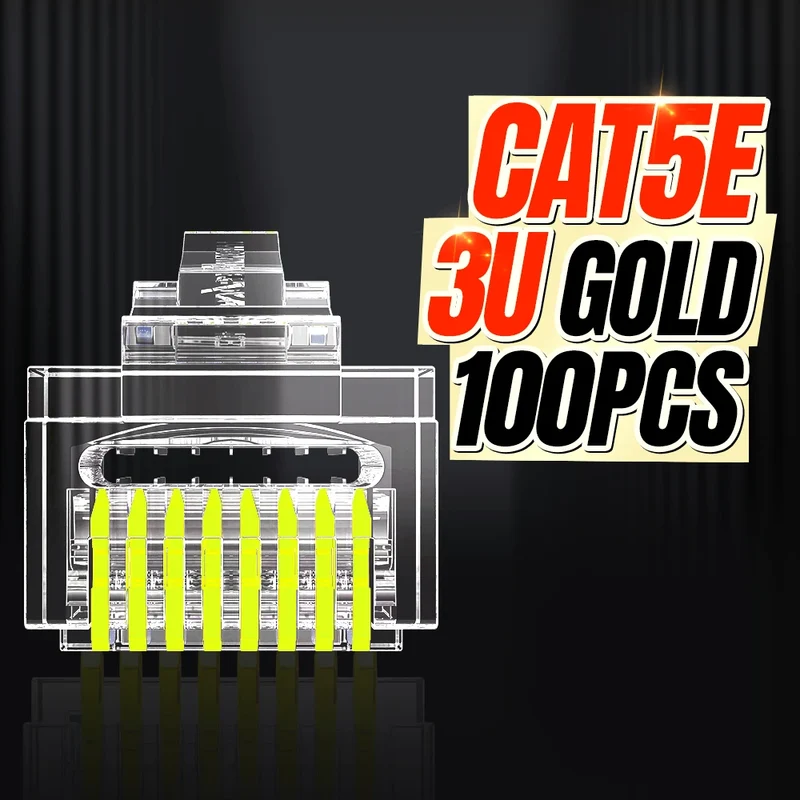

CAT5E Pass Through RJ45 Connectors

Note:

• Make sure to use the correct wiring scheme

• Note that the only difference between T568A and T568B is the reversal of pairs 2 and 3 - it's only a color code change, but if you mix up the two on each ends of a cable you will have a wiremap problem

Multiple Certifications More Confidence In Use
